Hikvision
/
Network IP Kayıt Cihazı

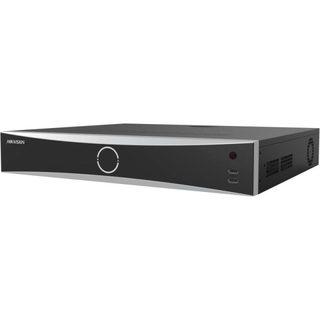

32 Kanal 1U 16 PoE AcuSense 4K NVR
DS-7932NXI-I4/16P/S
H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Maksimum 4-ch perimeter protection
Maksimum 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
Maksimum 32-ch IP camera inputs
Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Maksimum 16-ch 1080p decoding capability
Maksimum 320 Mbps incoming bandwidth
Teknik Özellikler
Genel
Güç Beslemesi
100 to 240 VAC, 50 to 60 Hz Total power: ≤ 360 W
Güç Tüketimi
≤ 30 W (without HDD)
Çalışma Sıcaklığı
-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Çalışma Nemi
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)
445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Facial Detection And Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
Facial Detection And Analytics Performance
1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
Face Picture Comparison
4-ch face picture comparison alarm
Çözme Formatı
H.265+/H.265/H.264+/H.264/MPEG4
Kayıt Çözünürlüğü
12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Eşzamanlı Oynatma
16-ch
Çözme Kapasitesi
16-ch @ 1080p (30 fps)
Dual-Stream Recording
Support
Akış Tipi
Video, Video & Audio
Live View Window Division
1/2/4/6/8/9/16/25/32/36
Aux Port Window Division
1/2/4/6/8/9/16/25/32/36
Playback Mode
Hayırrmal/Smart, Event, Tag, Eternal File
Ses Sıkıştırma
G.711ulaw/G.711alaw/G.722/G.726/MP2L2
Human/Vehicle Analysis
32-ch
Human/Vehicle Analysis
Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total
Interface
16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
≤ 200 W
Standard
IEEE 802.3 af/at
Video ve Ses
IP Kamera Girişi
32-ch Up to 12 MP resolution
Giriş Bant Genişliği
320 Mbps
Çıkış Bant Genişliği
256 Mbps
HDMI 1 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
HDMI 2 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
VGA Çıkışı
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
CVBS Çıkışı
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Ses Çıkışı
1-ch, RCA (Linear, 1 KΩ)
İki Yönlü Ses
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Ağ
Uzak Bağlantı
128
Ağ Protokolü
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Ağ Arayüzü
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Arayüz
Seri Arayüz
RS-485 (half-duplex), RS-232, Keyboard
SATA
4 SATA interfaces supporting hot-plug
ESATA
1 eSATA interface
Kapasite
Up to 10 TB capacity for each disk
Alarm Giriş/Çıkış
16/8
USB Arayüzü
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
