Hikvision
/
Network IP Kayıt Cihazı

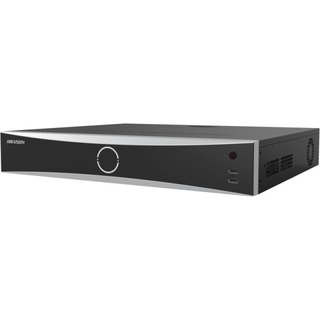

16 Kanal 1.5U AcuSense 4K NVR
DS-7916NXI-I4/S
H.265+/H.265/H.264+/H.264 video formats
Intelligent analytics based on deep learning algorithm
Maksimum 4-ch perimeter protection
Maksimum 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
Maksimum 16-ch IP camera inputs
Maksimum 16-ch 1080p decoding capability
Maksimum 320 Mbps incoming bandwidth
Teknik Özellikler
Genel
Güç Beslemesi
100 to 240 VAC, 50 to 60 Hz
Güç Tüketimi
≤ 30 W (without HDD)
Çalışma Sıcaklığı
-10 °C to 55 °C (14 °F to 131 °F)
Çalışma Nemi
10% to 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H)
445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")
FCC
Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Facial Detection And Analytics
Face picture comparison, human face capture, face picture search
Face Picture Library
Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
Face Picture Comparison
4-ch face picture comparison alarm
Facial Detection And Analytics Performance
1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
Çözme Formatı
H.265+/H.265/H.264+/H.264/MPEG4
Kayıt Çözünürlüğü
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Playback Mode
Hayırrmal/Smart, Event, Tag, Eternal File
Eşzamanlı Oynatma
16-ch
Live View Window Division
1/2/4/6/8/9/16
Aux Port Window Division
1/2/4/6/8/9/16
Çözme Kapasitesi
16-ch @ 1080p (30 fps)
Dual-Stream Recording
Support
Akış Tipi
Video, Video & Audio
Ses Sıkıştırma
G.711ulaw/G.711alaw/G.722/G.726/MP2L2
Human/Vehicle Analysis
16-ch
Human/Vehicle Analysis
Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total
Video ve Ses
IP Kamera Girişi
16-ch Up to 12 MP resolution *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Giriş Bant Genişliği
320 Mbps
Çıkış Bant Genişliği
256 Mbps
HDMI 1 Output
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
HDMI 2 Output
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
VGA Çıkışı
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output
CVBS Çıkışı
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Ses Çıkışı
1-ch, RCA (Linear, 1 KΩ)
İki Yönlü Ses
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Ağ
Uzak Bağlantı
128
Ağ Protokolü
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Ağ Arayüzü
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Arayüz
Seri Arayüz
RS-485 (half-duplex), RS-232, Keyboard
SATA
4 SATA interfaces supporting hot-plug
Kapasite
Up to 10 TB capacity for each disk
ESATA
1 eSATA interface
Alarm Giriş/Çıkış
16/8
USB Arayüzü
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
