Hikvision
/
Network IP Kayıt Cihazı

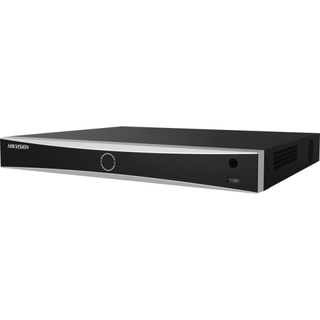

16 Kanal 1U AcuSense 4K NVR
DS-7616NXI-I2/4S
Maksimum 16 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Maksimum 12 MP high-definition live view, storage and playback
Maksimum 12-ch @ 1080p decoding capacity
Maksimum 160 Mbps high incoming bandwidth ensures IP cameras can be connected
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
2 HDDs for continuous video recording
Compatible with third-party network cameras
Teknik Özellikler
Genel
Güç Beslemesi
12 VDC,≤ 40 W
Güç Tüketimi
≤ 15 W
Çalışma Sıcaklığı
-10 °C to 55 °C (14 °F to 131 °F)
Çalışma Nemi
10 to 90 %
Chassis
1U
Dimension (W × D × H)
380 × 315 × 51.5 mm ( 15.0"× 12.4" × 2.0")
Çözme Formatı
H.265+,H.265,H.264+,H.264
Çözme Kapasitesi
12 × 1080p
Eşzamanlı Oynatma
16-ch
Kayıt Çözünürlüğü
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Human/Vehicle Analysis
False alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.
Interface
N/A
RAID Type
Hayır
Video ve Ses
IP Kamera Girişi
16-ch
HDMI Çıkışı
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Çıkışı
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Çıkışı
1-ch, BNC (1.0 Vp-p, 75 Ω)
Giriş Bant Genişliği
160 Mbps/256 Mbps
Ses Çıkışı
1-ch, RCA (Linear, 1 KΩ)
İki Yönlü Ses
1-ch, RCA (2.0 Vp-p, 1 k Ω)
Ağ
Ağ Arayüzü
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Arayüz
SATA
2 SATA interfaces for two 3.5-inch HDDs
Kapasite
Up to 8 TB capacity for each HDD
USB Arayüzü
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm Giriş/Çıkış
4/1
