Hikvision
/
AcuSense Series

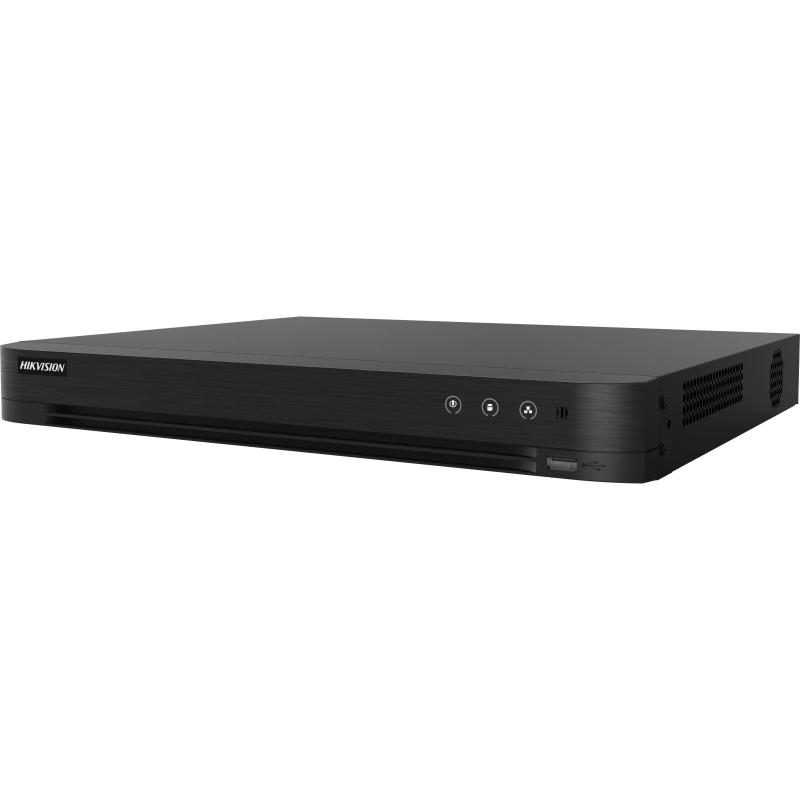

iDS-7204HUHI-K2/4S(C)
4-CH 5 MP 1U H.265 ACUSENSE DVR
4 channels and 2 HDDs 1U AcuSense DVR
False alarm reduction by human and vehicle target classification based on deep learning
Verimli H.265 Pro+ sıkıştırma teknolojisi
Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
5 sinyal girişini adaptif olarak destekler (HDTVI/AHD/CVI/CVBS/IP)
8 adede kadar ağ kamerası bağlanabilir
Teknik Özellikler
Genel
Güç Beslemesi
12 VDC, 2.3 A
Güç Tüketimi
≤ 10 W (without HDD)
Çalışma Sıcaklığı
-10 °C to +55 °C (+14 °F to +131 °F)
Çalışma Nemi
10% to 90%
Dimension (W × D × H)
384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
Facial Detection And Capture
1-ch human face capture (HD analog camera)
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Human/Vehicle Analysis
Up to 4-ch
Kayıt
Video Sıkıştırma
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution
Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1. Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate
32 Kbps to 10 Mbps
Çift Akış
Support
Akış Tipi
Video, Video & Audio
Ses Sıkıştırma
G.711u
Audio Bitrate
64 Kbps
Video ve Ses
IP Kamera Girişi
2-ch (up to 6-ch) Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input
8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 8 MP signal input is only available for channel 1.
AHD Input
5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
CVBS Input
PAL/NTSC
HDMI Output
1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output
CVBS Çıkışı
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Ses Girişi
4-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable
Ses Çıkışı
1-ch, RCA (Linear, 1 KΩ)
İki Yönlü Ses
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Eşzamanlı Oynatma
4-ch
Ağ
Ağ Arayüzü
1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Remote Connection
32
Network Protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Wi-Fi
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Arayüz
Seri Arayüz
RS-485 (half-duplex)
SATA
2 SATA interfaces
Kapasite
Up to 10 TB capacity for each disk
Alarm In/Out
4/1
USB Arayüzü
Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0
