Hikvision
/
Pro Series EasyIP

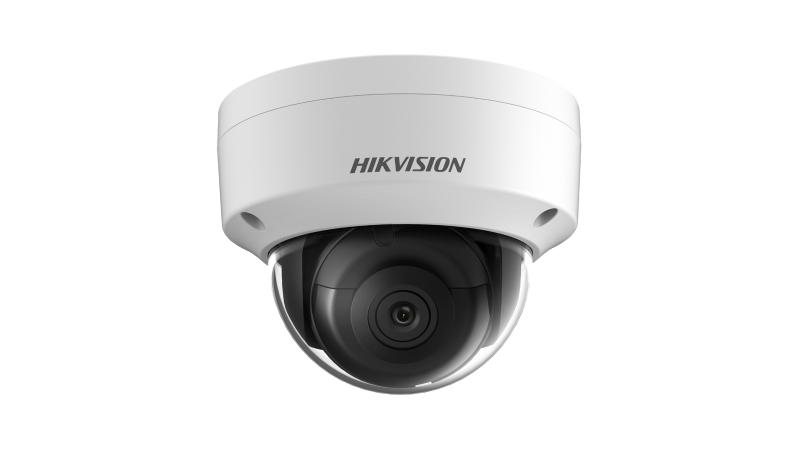

DS-2CD2165G0-I(S)
6 MP POWERED-BY-DARKFİGHTER FİXED DOME NETWORK CAMERA
6 MP resolution ile yüksek kaliteli görüntüleme
Excellent low-light performance via powered-by-DarkFighter technology
Verimli H.265+ sıkıştırma teknolojisi
Clear imaging against strong back light due to 120 dB true WDR technology
-S: audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Robust structure design with full metal materials
Teknik Özellikler
Genel
Firmware Version
V5.5.80
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Güç Beslemesi
12 VDC ± 25%, Φ 5.5mm,PoE(802.3af, class 3)
Power Consumption And Current
12 VDC, 0.5 A, max: 6 W; PoE: (802.3af, 36 VDC to 57 VDC), 0.2 A to 0.1 A, max: 7.5 W
Camera Dimension
Camera: Φ 111 mm × 82.4 mm (Φ 4.4" × 3.2"),Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
Camera Weight
Camera: approx. 500 g (1.1 lb.)
Kamera
Görüntü Sensörü
1/2.4" Progressive Scan CMOS
Minimum Aydınlatma
Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120dB
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Focus
Fixed
Lens Tipi
2.8/4/6 mm
FOV
2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°;4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101°;6 mm, horizontal FOV: 60°, vertical FOV: 38°
Aperture
F1.6
Lens Mount
M12
Aydınlatma
IR Range
Up to 30 m
Wavelength
850nm
Video
Maksimum Çözünürlük
3072 × 2048
Main Stream
50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Sıkıştırma
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Hızı
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Region Of Interest (ROI)
Support 1 fixed region for main stream and sub-stream
Ses
Ses Sıkıştırma
G722.1/G.711/G726/MP2L2/PCM/MP3
Ses Bit Hızı
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Ağ
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Protokoller
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Görüntü
Gece / Gündüz Geçişi
Day/Night/Auto/Schedule/Triggered by alarm input (-S)
DNR
3D DNR
Görüntü İyileştirme
BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Arayüz
On-board Storage
Built-in microSD/SDHC/SDXC slot, up to 128 GB
Hardware Reset
Yes
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Olay
Smart Event
Line crossing detection, intrusion detection
Face Detection
Yes
Sertifikasyon
Koruma
IP67，IK10
