Hikvision
/
Value Series

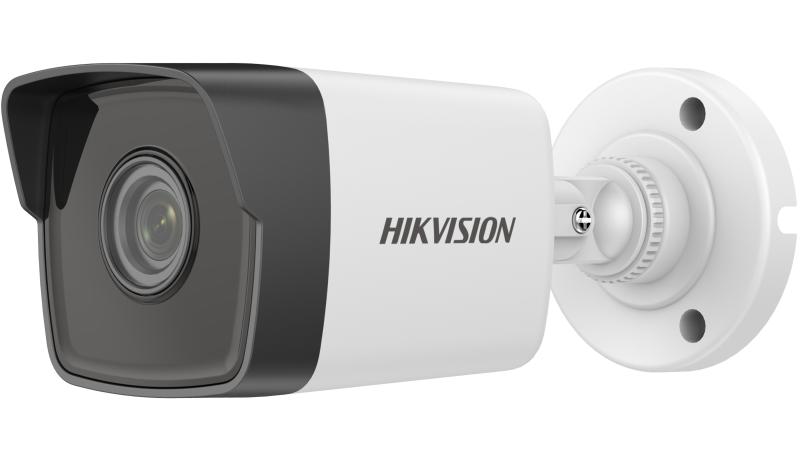

5 MP Sabit Mermi Ağ Kamerası
DS-2CD1053G0-I (UF)
5 MP çözünürlük sunar
Verimli H.265+ sıkıştırma teknolojisi sunar
Clear imaging even with strong back lighting due to 120 dB WDR
Suya ve toza dayanıklı IP67 korumasına sahiptir
EXIR 2.0 ile uzun IR mesafesinde gelişmiş kızılötesi aydınlatma sunar
-UF: dahili mikrofon for real-time audio security
Teknik Özellikler
Genel
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Olculer
177.6 mm × 67.8 mm ×66.2 mm (7" × 2.7" × 2.6")
Package Dimension
216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
With Package Weight
Approx. 481 g (1.1 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Kamera
Goruntu Sensoru
1/2.7" Progressive Scan CMOS
Maks. Cozunurluk
2560 × 1920
Min. Aydinlatma
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Gunduz / Gece
IR cut filtresi
Aci Ayari
Pan: 0° to 360°, tilt: 0° to180°, rotate: 0° to 360°
Lens
Lens Tipi
Sabit focal lens, 2.8 and 4 mm optional
Odak Uzakligi Ve Gorus Acisi
2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0° 4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°
Lens Yuvasi
M12
Iris Tipi
Sabit
Diyafram
F2.0
Aydinlatma
Ek Aydinlatma Tipi
IR
Ek Aydinlatma Mesafesi
Up to 30 m
IR Dalga Boyu
850 nm
Video
Ana Akis
50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Alt Akis
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Sikistirma
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Hızı
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main profile
Region Of Interest (ROI)
1 fixed region for main stream
Ses
Ses Sikistirma
-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Ses Bit Hızı
-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate
-UF: 8 kHz/16 kHz
Environment Noise Filtering
-UF: Evet
Ag
Protokoller
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface, ISAPI
Kullanici / Host
Up to 32 users. 3 levels: administrator, operator and user 3 user levels: administrator, operator, and user
Client
iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Goruntu
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Gece / Gündüz Geçişi
Auto, Schedule, Day, Night
Wide Dynamic Range (WDR)
120 dB
Görüntü İyileştirme
BLC, 3D DNR
Arayuz
Ethernet Arayüzü
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
-UF: Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone
-UF: Evet
Reset Key
-UF: Evet
Olay
Temel Olay
Motion detection, video tampering, exception
Linkage
Upload to FTP, notify surveillance center, send email -UF also supports: upload to memory card, trigger recording, trigger capture
Sertifikasyon
EMC
FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 7; KC: KN 32: 2015, KN 35: 2015
Safety
UL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) Hayir 1907/2006
Koruma
IP67: IEC 60529-2013
Alternatif çözümler
Benzer Ürünler
Value Series

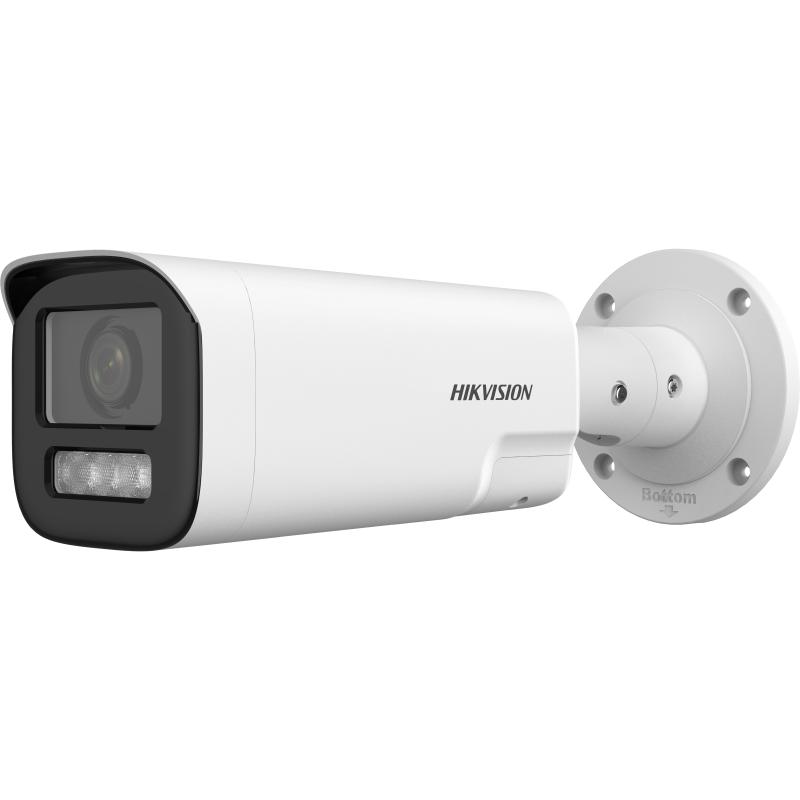

4 MP DUAL LİGHT MD 2.0 VARİFOCAL BULLET NETWORK CAMERA
DS-2CD1643G2-LIZ(S)U/SL
Ürünü İncele
Value Series

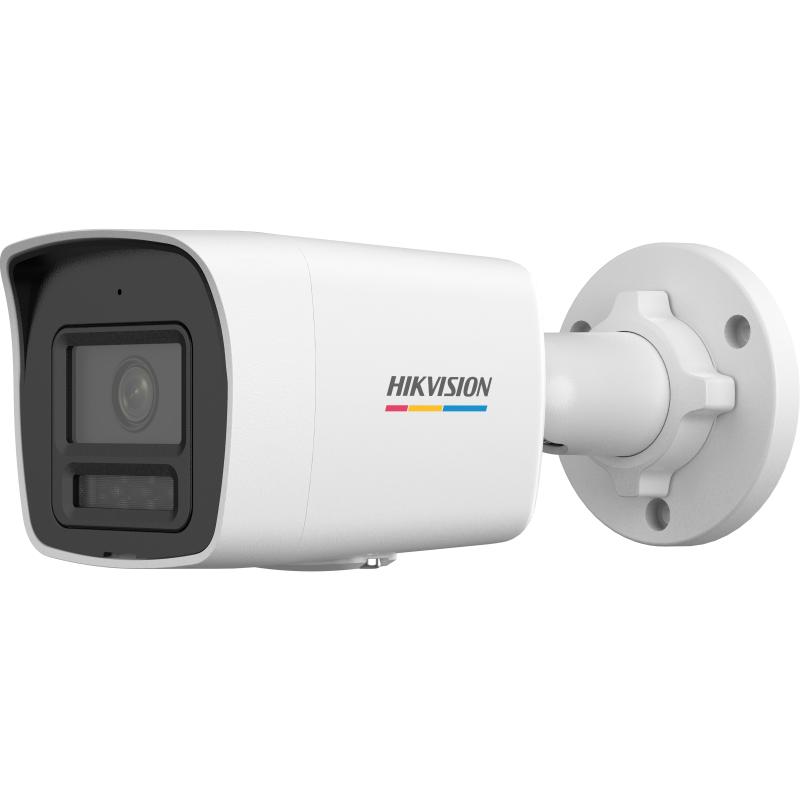

4 MP COLORVU WİTH SMART HYBRİD LİGHT FİXED BULLET NETWORK CAMERA
