Hikvision
/
Speed Dome Kameralar

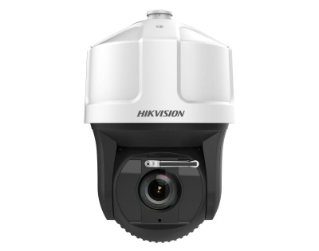

4 MP 40X DarkFighter Traffic Network Speed Dome
iDS-2VS435-F840-EY
4 MP 40X DarkFighter Traffic ağ speed dome kamera
Teknik Özellikler
Alarm Linkage
Alarm Linkage
preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart tracking
Power Output
AC24±25%
Communication Interface
RJ45;Self-adaptive 10M/100M Ethernet port
Fiber Interface
no
Alarm Girişi
7 alarm inputs
Alarm Çıkışı
2 alarm output
Power Interface
AC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Power Off Memory
yes
On Board Storage
Built-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Shutter Speed
1/1-1/30,000s
Focus
semi-auto;manual;auto
Day & Night
ICR
BLC
yes
WDR
140 dB WDR
HLC
yes
3D DNR
yes
Defog
yes
OIS
no
Regional Exposure
yes
Regional Focus
yes
White Balance
auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
Privacy Mask
up to 24 masks;mosaic mask;mask color configurable
DORI
D: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 m
SNR
≥55dB
Optical Defog
yes
FOV
Horizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)
Aperture
F1.3
IR Distance
400 m
Movement Range (Pan)
360°
Movement Range (Tilt)
-20° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed
tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Presets
300
Patrol Scan
8 patrols
Pattern Scan
4 pattern scans
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
H.264 Type
baseline profile;main profile;high profile
H.264+
yes
H.265+
yes
SVC
yes
ROI
yes
Target Cropping
no
Environment Noise Filtering
yes
Enforcement
illegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse driving
Temel Olay
audio exception;motion detection;video tampering alarm
API
Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;Ehome
Simultaneous Live View
20
User/Host
32
Security Measures
Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Client
iVMS-4200
Web Browser
IE8+;Firefox30+;Safari11+;Chrome41+
RS 485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC Hi-PoE
Power Consumption And Current
max. 62 W, including max. 15 W for IR and max. 5 W for heater
Operating Conditions
-40℃ to 70℃, humidity lower than 95%RH
Reset
yes
Wiper
yes
De Icing
NO
Demist
NO
Material
ADC12
Boyutlar
Φ266.6×410mm
Ağırlık
8KG
Koruma
IP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Audio Compression
Ses Sıkıştırma
G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
Audio Sampling Rate
MP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz;PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz
Ses Girişi
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Ses Çıkışı
1 audio output, line level, impedance: 600 ΩAğNetwork StorageNAS (NFS, SMB/ CIFS)ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Network Storage
NAS (NFS, SMB/ CIFS)
Protokoller
IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Main Stream
50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)
Smart Record
ANR
Smart Encoding
H.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Alarm Linkage
preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart tracking
Power Output
AC24±25%
Communication Interface
RJ45;Self-adaptive 10M/100M Ethernet port
Fiber Interface
no
Alarm Girişi
7 alarm inputs
Alarm Çıkışı
2 alarm output
Power Interface
AC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Power Off Memory
yes
On Board Storage
Built-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Shutter Speed
1/1-1/30,000s
Focus
semi-auto;manual;auto
Day & Night
ICR
BLC
yes
WDR
140 dB WDR
HLC
yes
3D DNR
yes
Defog
yes
OIS
no
Regional Exposure
yes
Regional Focus
yes
White Balance
auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
Privacy Mask
up to 24 masks;mosaic mask;mask color configurable
DORI
D: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 m
SNR
≥55dB
Optical Defog
yes
FOV
Horizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)
Aperture
F1.3
IR Distance
400 m
Movement Range (Pan)
360°
Movement Range (Tilt)
-20° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed
tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Presets
300
Patrol Scan
8 patrols
Pattern Scan
4 pattern scans
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
H.264 Type
baseline profile;main profile;high profile
H.264+
yes
H.265+
yes
SVC
yes
ROI
yes
Target Cropping
no
Environment Noise Filtering
yes
Enforcement
illegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse driving
Temel Olay
audio exception;motion detection;video tampering alarm
API
Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;Ehome
Simultaneous Live View
20
User/Host
32
Security Measures
Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Client
iVMS-4200
Web Browser
IE8+;Firefox30+;Safari11+;Chrome41+
RS 485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC Hi-PoE
Power Consumption And Current
max. 62 W, including max. 15 W for IR and max. 5 W for heater
Operating Conditions
-40℃ to 70℃, humidity lower than 95%RH
Reset
yes
Wiper
yes
De Icing
NO
Demist
NO
Material
ADC12
Boyutlar
Φ266.6×410mm
Ağırlık
8KG
Koruma
IP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Dijital Zoom
Dijital Zoom
16x
Optik Zoom
40 ×
Focal Length
6-240mm
Zoom Speed
approx. 4.8 s
Constant Fx Throughout The Zoom Range
no
Proportional Zoom
yesVideoMaksimum Çözünürlük2560 × 1440Stream Typemain stream;sub-stream;third streamSub Stream50Hz:25fps(704×576,640×480,352×288);60Hz:30fps(704×480,640×480,352×240)Third Stream50Hz:25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288); 60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)Video SıkıştırmaH.265;H.264;MPEG4Smooth StreamingnoSesAudio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCMAudio Sampling RateMP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz;PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHzSes Girişi1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%Ses Çıkışı1 audio output, line level, impedance: 600 ΩAğNetwork StorageNAS (NFS, SMB/ CIFS)ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Maksimum Çözünürlük
2560 × 1440
Akış Tipi
main stream;sub-stream;third stream
Sub Stream
50Hz:25fps(704×576,640×480,352×288);60Hz:30fps(704×480,640×480,352×240)
Third Stream
50Hz:25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288); 60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Video Sıkıştırma
H.265;H.264;MPEG4
Smooth Streaming
noSesAudio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCMAudio Sampling RateMP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz;PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHzSes Girişi1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%Ses Çıkışı1 audio output, line level, impedance: 600 ΩAğNetwork StorageNAS (NFS, SMB/ CIFS)ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Ses Sıkıştırma
G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
Audio Sampling Rate
MP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz;PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz
Ses Girişi
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Ses Çıkışı
1 audio output, line level, impedance: 600 ΩAğNetwork StorageNAS (NFS, SMB/ CIFS)ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Network Storage
NAS (NFS, SMB/ CIFS)
Protokoller
IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Main Stream
50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)
Smart Record
ANR
Smart Encoding
H.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Alarm Linkage
preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart tracking
Power Output
AC24±25%
Communication Interface
RJ45;Self-adaptive 10M/100M Ethernet port
Fiber Interface
no
Alarm Girişi
7 alarm inputs
Alarm Çıkışı
2 alarm output
Power Interface
AC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Power Off Memory
yes
On Board Storage
Built-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Shutter Speed
1/1-1/30,000s
Focus
semi-auto;manual;auto
Day & Night
ICR
BLC
yes
WDR
140 dB WDR
HLC
yes
3D DNR
yes
Defog
yes
OIS
no
Regional Exposure
yes
Regional Focus
yes
White Balance
auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
Privacy Mask
up to 24 masks;mosaic mask;mask color configurable
DORI
D: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 m
SNR
≥55dB
Optical Defog
yes
FOV
Horizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)
Aperture
F1.3
IR Distance
400 m
Movement Range (Pan)
360°
Movement Range (Tilt)
-20° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed
tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Presets
300
Patrol Scan
8 patrols
Pattern Scan
4 pattern scans
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
H.264 Type
baseline profile;main profile;high profile
H.264+
yes
H.265+
yes
SVC
yes
ROI
yes
Target Cropping
no
Environment Noise Filtering
yes
Enforcement
illegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse driving
Temel Olay
audio exception;motion detection;video tampering alarm
API
Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;Ehome
Simultaneous Live View
20
User/Host
32
Security Measures
Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Client
iVMS-4200
Web Browser
IE8+;Firefox30+;Safari11+;Chrome41+
RS 485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC Hi-PoE
Power Consumption And Current
max. 62 W, including max. 15 W for IR and max. 5 W for heater
Operating Conditions
-40℃ to 70℃, humidity lower than 95%RH
Reset
yes
Wiper
yes
De Icing
NO
Demist
NO
Material
ADC12
Boyutlar
Φ266.6×410mm
Ağırlık
8KG
Koruma
IP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Image Sensor
Görüntü Sensörü
1/1.8＂ progressive scan CMOS
Minimum Aydınlatma
color: 0.002Lux@（F1.3,AGC ON）; B/W: 0.0002Lux@(F1.3, AGC ON) ，0Lux with IRLensDijital Zoom16xOptik Zoom40 ×Focal Length6-240mmZoom Speedapprox. 4.8 sConstant Fx Throughout The Zoom RangenoProportional ZoomyesVideoMaksimum Çözünürlük2560 × 1440Stream Typemain stream;sub-stream;third streamSub Stream50Hz:25fps(704×576,640×480,352×288);60Hz:30fps(704×480,640×480,352×240)Third Stream50Hz:25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288); 60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)Video SıkıştırmaH.265;H.264;MPEG4Smooth StreamingnoSesAudio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCMAudio Sampling RateMP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz;PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHzSes Girişi1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%Ses Çıkışı1 audio output, line level, impedance: 600 ΩAğNetwork StorageNAS (NFS, SMB/ CIFS)ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Dijital Zoom
16x
Optik Zoom
40 ×
Focal Length
6-240mm
Zoom Speed
approx. 4.8 s
Constant Fx Throughout The Zoom Range
no
Proportional Zoom
yesVideoMaksimum Çözünürlük2560 × 1440Stream Typemain stream;sub-stream;third streamSub Stream50Hz:25fps(704×576,640×480,352×288);60Hz:30fps(704×480,640×480,352×240)Third Stream50Hz:25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288); 60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)Video SıkıştırmaH.265;H.264;MPEG4Smooth StreamingnoSesAudio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCMAudio Sampling RateMP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz;PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHzSes Girişi1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%Ses Çıkışı1 audio output, line level, impedance: 600 ΩAğNetwork StorageNAS (NFS, SMB/ CIFS)ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Maksimum Çözünürlük
2560 × 1440
Akış Tipi
main stream;sub-stream;third stream
Sub Stream
50Hz:25fps(704×576,640×480,352×288);60Hz:30fps(704×480,640×480,352×240)
Third Stream
50Hz:25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288); 60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Video Sıkıştırma
H.265;H.264;MPEG4
Smooth Streaming
noSesAudio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCMAudio Sampling RateMP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz;PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHzSes Girişi1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%Ses Çıkışı1 audio output, line level, impedance: 600 ΩAğNetwork StorageNAS (NFS, SMB/ CIFS)ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Ses Sıkıştırma
G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
Audio Sampling Rate
MP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz;PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz
Ses Girişi
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Ses Çıkışı
1 audio output, line level, impedance: 600 ΩAğNetwork StorageNAS (NFS, SMB/ CIFS)ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Network Storage
NAS (NFS, SMB/ CIFS)
Protokoller
IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Main Stream
50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)
Smart Record
ANR
Smart Encoding
H.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Alarm Linkage
preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart tracking
Power Output
AC24±25%
Communication Interface
RJ45;Self-adaptive 10M/100M Ethernet port
Fiber Interface
no
Alarm Girişi
7 alarm inputs
Alarm Çıkışı
2 alarm output
Power Interface
AC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Power Off Memory
yes
On Board Storage
Built-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Shutter Speed
1/1-1/30,000s
Focus
semi-auto;manual;auto
Day & Night
ICR
BLC
yes
WDR
140 dB WDR
HLC
yes
3D DNR
yes
Defog
yes
OIS
no
Regional Exposure
yes
Regional Focus
yes
White Balance
auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
Privacy Mask
up to 24 masks;mosaic mask;mask color configurable
DORI
D: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 m
SNR
≥55dB
Optical Defog
yes
FOV
Horizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)
Aperture
F1.3
IR Distance
400 m
Movement Range (Pan)
360°
Movement Range (Tilt)
-20° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed
tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Presets
300
Patrol Scan
8 patrols
Pattern Scan
4 pattern scans
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
H.264 Type
baseline profile;main profile;high profile
H.264+
yes
H.265+
yes
SVC
yes
ROI
yes
Target Cropping
no
Environment Noise Filtering
yes
Enforcement
illegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse driving
Temel Olay
audio exception;motion detection;video tampering alarm
API
Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;Ehome
Simultaneous Live View
20
User/Host
32
Security Measures
Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Client
iVMS-4200
Web Browser
IE8+;Firefox30+;Safari11+;Chrome41+
RS 485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC Hi-PoE
Power Consumption And Current
max. 62 W, including max. 15 W for IR and max. 5 W for heater
Operating Conditions
-40℃ to 70℃, humidity lower than 95%RH
Reset
yes
Wiper
yes
De Icing
NO
Demist
NO
Material
ADC12
Boyutlar
Φ266.6×410mm
Ağırlık
8KG
Koruma
IP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Main Stream
Main Stream
50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)
Smart Record
ANR
Smart Encoding
H.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Alarm Linkage
preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart tracking
Power Output
AC24±25%
Communication Interface
RJ45;Self-adaptive 10M/100M Ethernet port
Fiber Interface
no
Alarm Girişi
7 alarm inputs
Alarm Çıkışı
2 alarm output
Power Interface
AC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Power Off Memory
yes
On Board Storage
Built-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Shutter Speed
1/1-1/30,000s
Focus
semi-auto;manual;auto
Day & Night
ICR
BLC
yes
WDR
140 dB WDR
HLC
yes
3D DNR
yes
Defog
yes
OIS
no
Regional Exposure
yes
Regional Focus
yes
White Balance
auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
Privacy Mask
up to 24 masks;mosaic mask;mask color configurable
DORI
D: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 m
SNR
≥55dB
Optical Defog
yes
FOV
Horizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)
Aperture
F1.3
IR Distance
400 m
Movement Range (Pan)
360°
Movement Range (Tilt)
-20° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed
tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Presets
300
Patrol Scan
8 patrols
Pattern Scan
4 pattern scans
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
H.264 Type
baseline profile;main profile;high profile
H.264+
yes
H.265+
yes
SVC
yes
ROI
yes
Target Cropping
no
Environment Noise Filtering
yes
Enforcement
illegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse driving
Temel Olay
audio exception;motion detection;video tampering alarm
API
Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;Ehome
Simultaneous Live View
20
User/Host
32
Security Measures
Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Client
iVMS-4200
Web Browser
IE8+;Firefox30+;Safari11+;Chrome41+
RS 485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC Hi-PoE
Power Consumption And Current
max. 62 W, including max. 15 W for IR and max. 5 W for heater
Operating Conditions
-40℃ to 70℃, humidity lower than 95%RH
Reset
yes
Wiper
yes
De Icing
NO
Demist
NO
Material
ADC12
Boyutlar
Φ266.6×410mm
Ağırlık
8KG
Koruma
IP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Maksimum Çözünürlük
Maksimum Çözünürlük
2560 × 1440
Akış Tipi
main stream;sub-stream;third stream
Sub Stream
50Hz:25fps(704×576,640×480,352×288);60Hz:30fps(704×480,640×480,352×240)
Third Stream
50Hz:25fps(1920×1080,1280×960,1280×720,704×576,640×480,352×288); 60Hz:30fps(1920×1080,1280×960,1280×720,704×480,640×480,352×240)
Video Sıkıştırma
H.265;H.264;MPEG4
Smooth Streaming
noSesAudio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCMAudio Sampling RateMP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz;PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHzSes Girişi1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%Ses Çıkışı1 audio output, line level, impedance: 600 ΩAğNetwork StorageNAS (NFS, SMB/ CIFS)ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Ses Sıkıştırma
G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
Audio Sampling Rate
MP2L2: 16kHz, 32kHz, 44.1kHz, 48kHz;PCM: 8kHz, 16kHz, 32kHz, 44.1kHz, 48kHz
Ses Girişi
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Ses Çıkışı
1 audio output, line level, impedance: 600 ΩAğNetwork StorageNAS (NFS, SMB/ CIFS)ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Network Storage
NAS (NFS, SMB/ CIFS)
Protokoller
IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Main Stream
50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)
Smart Record
ANR
Smart Encoding
H.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Alarm Linkage
preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart tracking
Power Output
AC24±25%
Communication Interface
RJ45;Self-adaptive 10M/100M Ethernet port
Fiber Interface
no
Alarm Girişi
7 alarm inputs
Alarm Çıkışı
2 alarm output
Power Interface
AC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Power Off Memory
yes
On Board Storage
Built-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Shutter Speed
1/1-1/30,000s
Focus
semi-auto;manual;auto
Day & Night
ICR
BLC
yes
WDR
140 dB WDR
HLC
yes
3D DNR
yes
Defog
yes
OIS
no
Regional Exposure
yes
Regional Focus
yes
White Balance
auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
Privacy Mask
up to 24 masks;mosaic mask;mask color configurable
DORI
D: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 m
SNR
≥55dB
Optical Defog
yes
FOV
Horizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)
Aperture
F1.3
IR Distance
400 m
Movement Range (Pan)
360°
Movement Range (Tilt)
-20° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed
tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Presets
300
Patrol Scan
8 patrols
Pattern Scan
4 pattern scans
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
H.264 Type
baseline profile;main profile;high profile
H.264+
yes
H.265+
yes
SVC
yes
ROI
yes
Target Cropping
no
Environment Noise Filtering
yes
Enforcement
illegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse driving
Temel Olay
audio exception;motion detection;video tampering alarm
API
Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;Ehome
Simultaneous Live View
20
User/Host
32
Security Measures
Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Client
iVMS-4200
Web Browser
IE8+;Firefox30+;Safari11+;Chrome41+
RS 485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC Hi-PoE
Power Consumption And Current
max. 62 W, including max. 15 W for IR and max. 5 W for heater
Operating Conditions
-40℃ to 70℃, humidity lower than 95%RH
Reset
yes
Wiper
yes
De Icing
NO
Demist
NO
Material
ADC12
Boyutlar
Φ266.6×410mm
Ağırlık
8KG
Koruma
IP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Network Storage
Network Storage
NAS (NFS, SMB/ CIFS)
Protokoller
IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;BonjourYapay ZekaMain Stream50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)Smart RecordANRSmart EncodingH.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Main Stream
50Hz:25fps(2560×1440, 1920×1080,1280×960,1280×720); 60Hz:30fps(2560×1440, 1920×1080,1280×960,1280×720)
Smart Record
ANR
Smart Encoding
H.265+;H.264+;low bit rate;ROI;SVCArayüzAlarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart trackingPower OutputAC24±25%Communication InterfaceRJ45;Self-adaptive 10M/100M Ethernet portFiber InterfacenoAlarm Girişi7 alarm inputsAlarm Çıkışı2 alarm outputPower InterfaceAC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Alarm Linkage
preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;white light flashing;smart tracking
Power Output
AC24±25%
Communication Interface
RJ45;Self-adaptive 10M/100M Ethernet port
Fiber Interface
no
Alarm Girişi
7 alarm inputs
Alarm Çıkışı
2 alarm output
Power Interface
AC24V±25% Hi-PoEDepolamaPower Off MemoryyesOn Board StorageBuilt-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Power Off Memory
yes
On Board Storage
Built-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Shutter Speed
1/1-1/30,000s
Focus
semi-auto;manual;auto
Day & Night
ICR
BLC
yes
WDR
140 dB WDR
HLC
yes
3D DNR
yes
Defog
yes
OIS
no
Regional Exposure
yes
Regional Focus
yes
White Balance
auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
Privacy Mask
up to 24 masks;mosaic mask;mask color configurable
DORI
D: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 m
SNR
≥55dB
Optical Defog
yes
FOV
Horizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)
Aperture
F1.3
IR Distance
400 m
Movement Range (Pan)
360°
Movement Range (Tilt)
-20° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed
tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Presets
300
Patrol Scan
8 patrols
Pattern Scan
4 pattern scans
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
H.264 Type
baseline profile;main profile;high profile
H.264+
yes
H.265+
yes
SVC
yes
ROI
yes
Target Cropping
no
Environment Noise Filtering
yes
Enforcement
illegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse driving
Temel Olay
audio exception;motion detection;video tampering alarm
API
Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;Ehome
Simultaneous Live View
20
User/Host
32
Security Measures
Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Client
iVMS-4200
Web Browser
IE8+;Firefox30+;Safari11+;Chrome41+
RS 485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC Hi-PoE
Power Consumption And Current
max. 62 W, including max. 15 W for IR and max. 5 W for heater
Operating Conditions
-40℃ to 70℃, humidity lower than 95%RH
Reset
yes
Wiper
yes
De Icing
NO
Demist
NO
Material
ADC12
Boyutlar
Φ266.6×410mm
Ağırlık
8KG
Koruma
IP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Power Off Memory
Power Off Memory
yes
On Board Storage
Built-in microSD slot; support microSD/microSDHC/microSDXC cards;up to 256 GBGenelShutter Speed1/1-1/30,000sFocussemi-auto;manual;autoDay & NightICRBLCyesWDR140 dB WDRHLCyes3D DNRyesDefogyesOISnoRegional ExposureyesRegional FocusyesWhite Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWBPrivacy Maskup to 24 masks;mosaic mask;mask color configurableDORID: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 mSNR≥55dBOptical DefogyesFOVHorizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)ApertureF1.3IR Distance400 mMovement Range (Pan)360°Movement Range (Tilt)-20° to 90° (auto flip)Pan Speedpan speed: configurable from 0.1° to 210°/s; preset speed: 280°/sTilt Speedtilt speed: configurable from 0.1° to 150°/s, preset speed 250°/sPresets300Patrol Scan8 patrolsPattern Scan4 pattern scansPark ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan3D PositioningyesPTZ Status DisplayyesPreset FreezingyesScheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux outputH.264 Typebaseline profile;main profile;high profileH.264+yesH.265+yesSVCyesROIyesTarget CroppingnoEnvironment Noise FilteringyesEnforcementillegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse drivingBasic Eventaudio exception;motion detection;video tampering alarmAPIOpen-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;EhomeSimultaneous Live View20User/Host32Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filterClientiVMS-4200Web BrowserIE8+;Firefox30+;Safari11+;Chrome41+RS 485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptivePower24 VAC Hi-PoEPower Consumption And Currentmax. 62 W, including max. 15 W for IR and max. 5 W for heaterOperating Conditions-40℃ to 70℃, humidity lower than 95%RHResetyesWiperyesDe IcingNODemistNOMaterialADC12DimensionsΦ266.6×410mmWeight8KGProtectionIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Shutter Speed
1/1-1/30,000s
Focus
semi-auto;manual;auto
Day & Night
ICR
BLC
yes
WDR
140 dB WDR
HLC
yes
3D DNR
yes
Defog
yes
OIS
no
Regional Exposure
yes
Regional Focus
yes
White Balance
auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
Privacy Mask
up to 24 masks;mosaic mask;mask color configurable
DORI
D: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 m
SNR
≥55dB
Optical Defog
yes
FOV
Horizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)
Aperture
F1.3
IR Distance
400 m
Movement Range (Pan)
360°
Movement Range (Tilt)
-20° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed
tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Presets
300
Patrol Scan
8 patrols
Pattern Scan
4 pattern scans
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
H.264 Type
baseline profile;main profile;high profile
H.264+
yes
H.265+
yes
SVC
yes
ROI
yes
Target Cropping
no
Environment Noise Filtering
yes
Enforcement
illegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse driving
Temel Olay
audio exception;motion detection;video tampering alarm
API
Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;Ehome
Simultaneous Live View
20
User/Host
32
Security Measures
Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Client
iVMS-4200
Web Browser
IE8+;Firefox30+;Safari11+;Chrome41+
RS 485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC Hi-PoE
Power Consumption And Current
max. 62 W, including max. 15 W for IR and max. 5 W for heater
Operating Conditions
-40℃ to 70℃, humidity lower than 95%RH
Reset
yes
Wiper
yes
De Icing
NO
Demist
NO
Material
ADC12
Boyutlar
Φ266.6×410mm
Ağırlık
8KG
Koruma
IP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Shutter Speed
Shutter Speed
1/1-1/30,000s
Focus
semi-auto;manual;auto
Day & Night
ICR
BLC
yes
WDR
140 dB WDR
HLC
yes
3D DNR
yes
Defog
yes
OIS
no
Regional Exposure
yes
Regional Focus
yes
White Balance
auto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
Privacy Mask
up to 24 masks;mosaic mask;mask color configurable
DORI
D: 3310.3 m O: 1313.6 m R: 662.1 m I: 331.0 m
SNR
≥55dB
Optical Defog
yes
FOV
Horizontal field of view: 56.6° to 1.8° (wide-tele) Vertical field of view: 33.7° to 1.0° (wide-tele) Diagonal field of view: 63.4° to 2.0° (wide-tele)
Aperture
F1.3
IR Distance
400 m
Movement Range (Pan)
360°
Movement Range (Tilt)
-20° to 90° (auto flip)
Pan Speed
pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
Tilt Speed
tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
Presets
300
Patrol Scan
8 patrols
Pattern Scan
4 pattern scans
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioning
yes
PTZ Status Display
yes
Preset Freezing
yes
Scheduled Task
preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
H.264 Type
baseline profile;main profile;high profile
H.264+
yes
H.265+
yes
SVC
yes
ROI
yes
Target Cropping
no
Environment Noise Filtering
yes
Enforcement
illegal parking;over lane line;illegal lane change;vehicle on non-motor vehicle lane;u-turning;reverse driving
Temel Olay
audio exception;motion detection;video tampering alarm
API
Open-ended API;ONVIF; ISAPI;Hikvision SDK;Third-party management platform;Ehome
Simultaneous Live View
20
User/Host
32
Security Measures
Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Client
iVMS-4200
Web Browser
IE8+;Firefox30+;Safari11+;Chrome41+
RS 485
Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power
24 VAC Hi-PoE
Power Consumption And Current
max. 62 W, including max. 15 W for IR and max. 5 W for heater
Operating Conditions
-40℃ to 70℃, humidity lower than 95%RH
Reset
yes
Wiper
yes
De Icing
NO
Demist
NO
Material
ADC12
Boyutlar
Φ266.6×410mm
Ağırlık
8KG
Koruma
IP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
Kurulum ve montaj
Uyumlu Aksesuarlar
Montaj
Bağlantı Kutusu
Dış ortam kamera montajı için temiz kurulum çözümü
Aksesuar
Direk Montaj Aparatı
Direk ve kolon uygulamalarında güvenli sabitleme
Güç
PoE / Güç Adaptörü
Kurulum tipine uygun besleme seçenekleri
Alternatif çözümler
Benzer Ürünler
