Hikvision
/
Pro Series EasyIP
DS-2CD2543G0-I(W)(S)

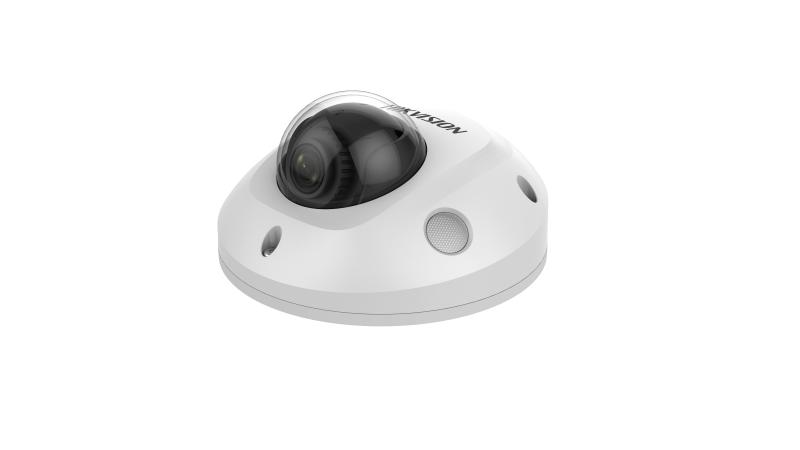

4 MP OUTDOOR WDR FİXED MİNİ DOME NETWORK CAMERA
4 MP resolution ile yüksek kaliteli görüntüleme
Verimli H.265+ sıkıştırma teknolojisi
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK08)
-W: Wi-Fi connection
-S: audio and alarm interface available
Real-time audio security için dahili mikrofon
Mini size suitable for limited space
Teknik Özellikler
Genel
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Firmware Version
V5.6.5
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Güç Beslemesi
12 VDC ± 25% PoE (802.3af, class 3)
Power Consumption And Current
12 VDC, 0.7 A, max. 8.5 W, Ø5.5mm coaxial plug power PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W
Camera Dimension
Ø120 mm × 67.4 mm (Ø4.7" × 2.7")
Camera Weight
Camera: approx. 400 g (0.9 lb.)
Kamera
Görüntü Sensörü
1/3" Progressive Scan CMOS
Minimum Aydınlatma
Color: 0.018 lux @(F1.6, AGC ON), 0 lux with IR on
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120 dB
Day & Night
IR Cut Filter
Angle Adjustment
Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Tipi
2.8, 4, 6 mm
FOV
2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114° 4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93° 6 mm, horizontal FOV: 48°, vertical FOV: 27°, diagonal FOV: 54°
Aperture
F1.6
Lens Mount
M12
Aydınlatma
IR Range
Up to 10 m
Wavelength
850 nm
Video
Maksimum Çözünürlük
2688 × 1520
Main Stream
50Hz: 25 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Video Sıkıştırma
Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Hızı
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Scalable Video Coding (SVC)
Support H.264 and H.265 encoding
Ses
Environment Noise Filtering
Yes
Audio Sampling Rate
16 kHz, 32kHz, 44.1kHz, 48kHz
Ses Sıkıştırma
G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Ses Bit Hızı
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Ağ
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Protokoller
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users. 3 levels: administrator, operator and user
Network Storage
Support MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Client
Wired network: Hik-Connect, iVMS-4200, Hik-Central Wi-Fi: iVMS-4200, Hik-Central *Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser
Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
Görüntü
Gece / Gündüz Geçişi
Auto/Schedule/Day/Night/Triggered by Alarm In (-S model)
DNR
3D DNR
Görüntü İyileştirme
BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Arayüz
Audio
-S: 2 inputs: line in, or mic in (built-in microphone) 1 output: line out, mono sound, terminal block
Alarm
-S: 1 input: alarm in 1 output: alarm out (max. 12 VDC, 30 mA), terminal block
On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset
Yes
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Olay
Temel Olay
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, intrusion detection, face detection
Face Detection
Yes
Sertifikasyon
Koruma
Ingress protection: IP67: IEC 60529-2013), IK08 (IEC 60529-2013)
Wi-Fi
Encryption Mode
-W: WPA, WPA2
Wi-Fi Protocol
-W: IEEE 802.11b/g/n
Frequency Range
-W: 2.412 GHz to 2.4835 GHz
Channel Bandwidth
-W: 20 MHz
Transfer Rate
-W: 11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
Wireless Range
-W: Up to 50 m (The performance varies based on actual environment)
