Hikvision
/
Pro Series EasyIP

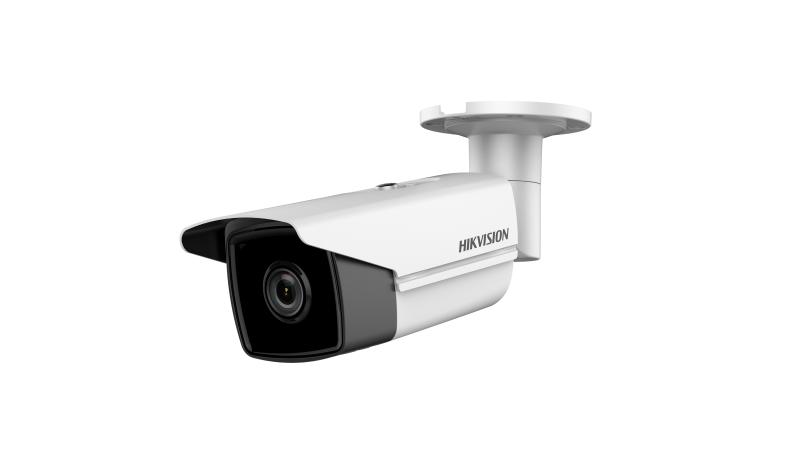

DS-2CD2T25FHWD-I5/I8
2 MP HİGH FRAME RATE FİXED BULLET NETWORK CAMERA
2 MP resolution ile yüksek kaliteli görüntüleme
Excellent low-light performance via powered-by-DarkFighter technology
Verimli H.265+ sıkıştırma teknolojisi
Clear imaging against strong back light due to 120 dB true WDR technology
High frame rate video to illustrate smooth movement
Water and dust resistant (IP67)
Robust structure design with full metal materials
Teknik Özellikler
Genel
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Firmware Version
V5.5.80
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup And Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Güç Beslemesi
12 VDC ± 25%, PoE(802.3af 36 to 57 V, class 3)
Power Consumption And Current
-I5: 12 VDC ± 25%, 7 W; PoE, 9 W,-I8: 12 VDC ± 25%, 10 W; PoE, 12.5 W
Camera Dimension
Camera: Φ105 × 299.7 mm (Φ4.13″ × 11.80″),Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″)
Camera Weight
1200 g (2.65 lb.)
Kamera
Görüntü Sensörü
1/2.8" Progressive Scan CMOS
Minimum Aydınlatma
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120dB
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Lens
Focus
Fixed
Lens Tipi
2.8/4/6/8/12 mm
FOV
2.8 mm, horizontal field of view: 108°,4 mm, horizontal field of view: 86.4°,6 mm, horizontal field of view: 52°,8 mm, horizontal field of view: 41°,12 mm, horizontal field of view: 25°
Lens Mount
M12
Aperture Type
F1.6
Aydınlatma
IR Range
-I5: up to 50 m,-I8: up to 80 m
Video
Maksimum Çözünürlük
1920 × 1080
Main Stream
50Hz: 50fps (1920 × 1080, 1280 × 960, 1280×720),60Hz: 60fps (1920 × 1080, 1280 × 960, 1280×720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 ×720, 640 × 360, 352 × 240)
Video Sıkıştırma
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Hızı
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Region Of Interest (ROI)
Support 1 fixed region for main stream and sub-stream
Ağ
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Protokoller
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Network Storage
Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm Trigger
Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
Görüntü
Gece / Gündüz Geçişi
Day/Night/Auto/Schedule
DNR
3D DNR
Görüntü İyileştirme
BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Arayüz
On-board Storage
Built-in microSD/SDHC/SDXC slot, up to 128G
Hardware Reset
Yes
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Olay
Temel Olay
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face Detection
Yes
Exception Detection
Scene change detection
Sertifikasyon
Koruma
IP67
