Hikvision
/
Pro Series EasyIP

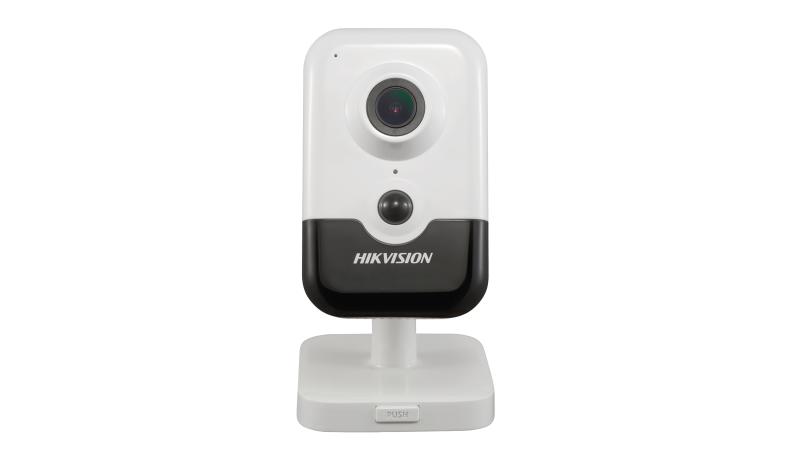

DS-2CD2425FWD-I(W)
2 MP POWERED BY DARKFİGHTER CUBE NETWORK CAMERA
2 MP resolution ile yüksek kaliteli görüntüleme
Excellent low-light performance via powered-by-DarkFighter technology
Verimli H.265+ sıkıştırma teknolojisi
Clear imaging against strong back light due to 120 dB true WDR technology
Provides real-time security through built-in two-way audio
Detects human body through passive infrared sensitive to body temperature (PIR)
-W: Wi-Fi connection
Teknik Özellikler
Genel
Linkage Method
Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Firmware Version
V5.5.80
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function
Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup And Operating Conditions
-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
Güç Beslemesi
12 VDC ± 20%, PoE (802.3af, class 3)
Power Consumption And Current
12 VDC, 0.38 A, max. 7 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
Camera Dimension
102.8 mm × 65.2 mm × 32.6 mm (4.05" × 2.57" × 1.28")
Camera Weight
Camera: Approx. 128 g (0.28 lb.)
Kamera
Görüntü Sensörü
1/2.8" Progressive Scan CMOS
Minimum Aydınlatma
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Wide Dynamic Range
120dB
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focus
Fixed
Lens Tipi
2.8 mm
FOV
Horizontal field of view: 108°, Vertical field of view: 59°, Diagonal field of view: 129°
Aperture
F1.6
Lens Mount
M12
Aydınlatma
IR Range
10 m
Wavelength
850nm
Video
Maksimum Çözünürlük
1920 × 1080
Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Video Sıkıştırma
Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Hızı
32 Kbps to 16 Mbps
H.264 Type
Main Profile/High Profile
H.265 Type
Main Profile
H.264+
Main stream supports
H.265+
Main stream supports
Scalable Video Coding (SVC)
Support H.264 and H.265 encoding
Region Of Interest (ROI)
Support 1 fixed region for main stream and sub-stream separately
Ses
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz
Ses Sıkıştırma
G722.1/G711/G726/MP2L2/PCM
Ses Bit Hızı
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Ağ
Simultaneous Live View
Up to 6 channels
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Protokoller
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users,3 levels: Administrator, Operator and User
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Client
iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser
Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
Görüntü
Gece / Gündüz Geçişi
Day/Night/Auto/Schedule
DNR
3D DNR
Görüntü İyileştirme
BLC/3D DNR/HLC
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Arayüz
Audio
1 built-in mic, 1 built-in speaker, mono sound
On-board Storage
Built-in Micro SD/SDHC/SDXC slot, up to 128G
Hardware Reset
Yes
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
Olay
Temel Olay
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event
Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face Detection
Yes
Exception Detection
Scene change detection
Transducer
PIR Angle
Horizontal: 90°, Vertical: 80°
PIR Range
10 m
Wi-Fi
Encryption Mode
WPA, WPA2
Wi-Fi Protocol
IEEE 802.11b/g/n
Frequency Range
2.412 GHz to 2.4835 GHz
Channel Bandwidth
20M/40M
Transfer Rate
11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range
50 m
