Hikvision
/
Value Series
DS-2CD1B27G3-LIU(F)(/SL)(/SRB)

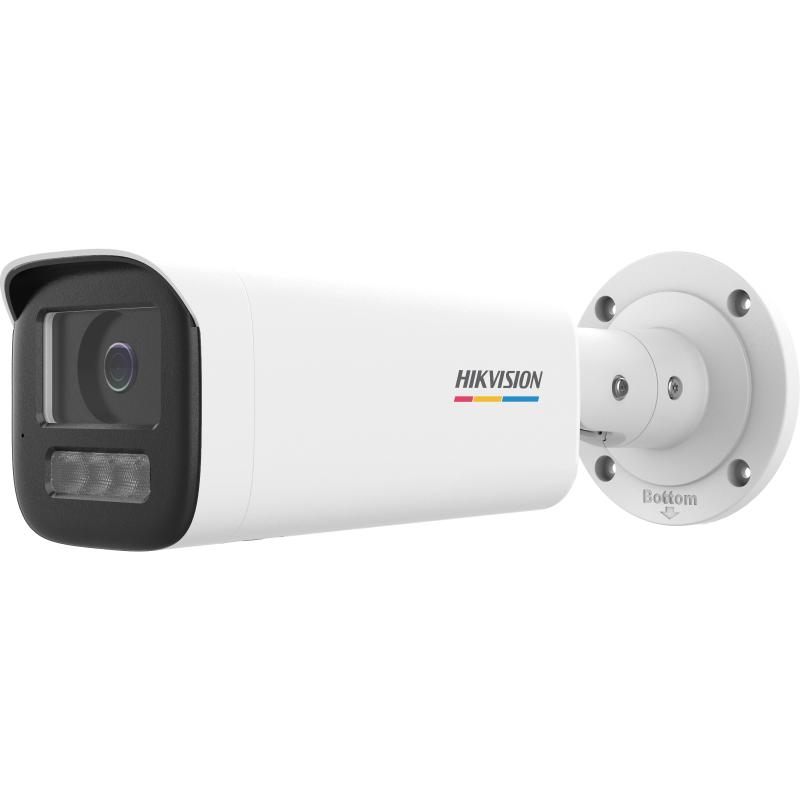

2 MP ColorVu 3.0 Fixed Bullet Network Camera
HikAI-ISP for excellent noise reduction effect
Super clear 24/7 colorful imaging with ColorVu 3.0 technology
Motion Detection 3.0, more accurate on person and vehicle classification
Smart Hybrid Light:Integrates IR and White lights, 3 supplemental lighting modes
-SL/-SRB: Provide real-time security via Dahili two-way audio and strobe light alarm
-F: on-board storage up to 512 GB (SD card slot) (Optional)
Suya ve toza dayanıklı (IP67)
Teknik Özellikler
Genel
Güç
-LIU/-LIUF: 12 VDC ± 25%, 0.52 A, max. 6.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W, -LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.68 A, max. 8.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.9 W
Malzeme
Front cover: metal, body: plastic, bracket: metal
Boyut
285.8 mm × 88.1 mm × 83.4 mm (11.25" × 3.46" × 3.28")
Paket Boyutu
386 mm × 156 mm × 155 mm (15.1" × 6.1" × 6.1")
Paketli Ağırlık
-LIU: Approx. 1140 g (2.5 lb.) -LIUF: Approx. 1180g (2.6 lb.) -SL/SRB: Approx. 1220g (2.7 lb.)
Depolama Koşulları
-30 °C to 60 °C (-22 °F to 140 °F). Nem 95% veya daha az (yoğuşmasız)
Başlangıç Ve Çalışma Koşulları
-30 °C to 60 °C (-22 °F to 140 °F). Nem 95% veya daha az (yoğuşmasız)
Dil
İngilizce, Rusça, Ukraynaca, Arabic, İspanyolca, Fransızca, Portuguese, Türkçe, Polish, Almanca
Genel İşlevler
Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
Flaş Işığı
-LIU、-LIUF：NA -LIU(F)/SL：Beyaz Işık -LIU(F)/SRB：Red and Blue Light
Kamera
Görüntü Sensörü
1/2.8" Progresif Tarama CMOS
Maks. Çözünürlük
1920 × 1080
Min. Aydınlatma
Renkli: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Enstantane Süresi
1 s to 1/100,000 s
Gündüz Ve Gece
IR kesme filtresi
Açı Ayarı
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Tipi
Fixed focal lens, 2.8 and 4 mm opsiyonel
Odak Uzaklığı Ve Görüş Açısı
2.8 mm, horizontal FOV 106°, vertical FOV 56°, diagonal FOV 129° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 103°
Lens Montajı
M12
Diyafram Tipi
Fixed
Diyafram Açıklığı
F1.0
Alan Derinliği
2.8 mm: 1.2 m to ∞ 4 mm: 1.3 m to ∞
DORI
DORI
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m 4 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m
Aydınlatma
Aydınlatma Işığı Tipi
IR,Beyaz Işık
Aydınlatma Işığı Menzili
Maks. 50 m
Akıllı Aydınlatma
Evet
IR Dalga Boyu
850 nm
Video
Ana Akış
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Alt Akış
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Video Sıkıştırma
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Hızı
32 Kbps to 8 Mbps
H.264 Tipi
Baseline Profile,Main Profile,High Profile
H.265 Tipi
Main Profile
Bit Hızı Kontrolü
CBR,VBR
Ölçeklenebilir Video Kodlama (SVC)
H.264 and H.265 encoding
İlgi Alanı (ROI)
1 fixed region for main stream and sub-stream
Ses
Ses Tipi
Mono ses
Ses Sıkıştırma
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Ses Bit Hızı
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps(MP3)
Ses Örnekleme Hızı
8 kHz/16 kHz
Ortam Gürültüsü Filtreleme
Evet
Ağ
Protokoller
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
Eşzamanlı Canlı İzleme
Maks. 6 kanal
API
ONVIF (Profile S, Profile G), ISAPI, SDK
Kullanıcı/Host
Maks. 32 users 3 user levels: administrator, operator, and user
Güvenlik
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
İstemci
iVMS-4200;Hik-Connect
Web Tarayıcı
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11 Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Görüntü
Görüntü Ayarları
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Gündüz/Gece Geçişi
Gündüz,Gece,Otomatik,Zamanlama
Geniş Dinamik Aralık (WDR)
120 dB
SNR
≥ 52 dB
Görüntü İyileştirme
BLC,HLC
Gizlilik Maskesi
4 programmable rectangular privacy masks
Arayüz
Ethernet Arayüzü
1 RJ45 10 M/100 M self-adaptive Ethernet port
Yerleşik Depolama
-LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Dahili Mikrofon
Evet,1 dahili mikrofon
Dahili Hoparlör
-LIU、-LIUF: NA -LIU/S(L)(RB)、-LIUF/S(L)(RB): Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB
Ses
NA
Alarm
NA
Sıfırlama Tuşu
-LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：YES
Olay
Temel Olaylar
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Tetikleme
Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture
Onaylar
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Güvenlik (Safety)
CB: IEC 62368-1: 2014+A11
Çevre
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Koruma Sınıfı
IP67: IEC 60529-2013
